| Specifications | |
| Thermal plastic coating preheating is used for continuous preheating, melting and mixing of coating, and preparing hot melt materials for thermal plastic machines in long-distance road marking work. Road marking work requires good thermal plastic preheating.Hydraulic system: It controls the pressure of the hydraulic. The working pressure in the hydraulic system is regulated by the overflow valve of the multi-way selector valve. The pressure gauge indicates the pressure value.Multi-way valve: Two function sticks control two hydraulic motors. The left function stick controls the left motor, and the left motor and right function level control the right motor. Each selector valve has three modes: forward, reverse, and neutral. | |

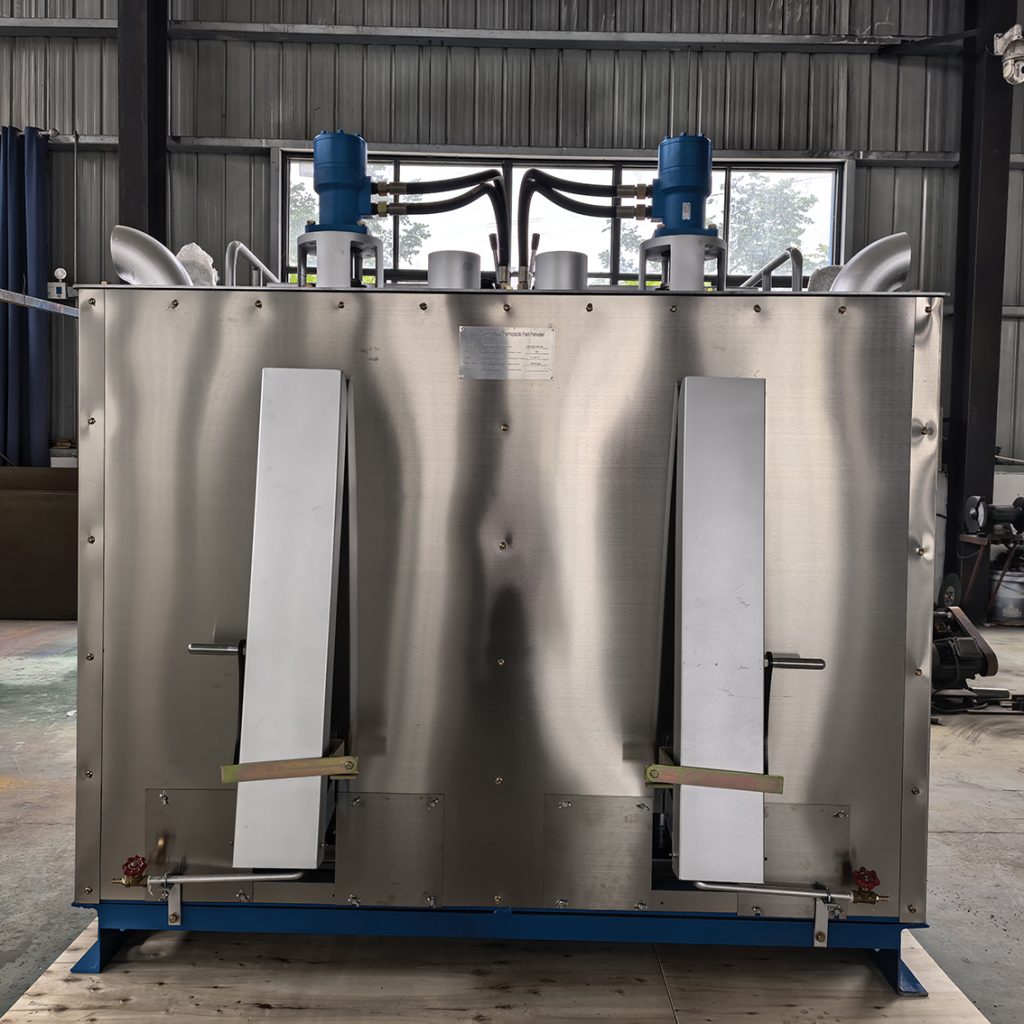

| Product name | Double drum hydraulic thermoplastic coating preheater |
| Model | SW-4A-1000 |
| Size | 1730*1650 * 1550mm |
| Weight | 1100 kilograms |
| Paint can capacity | 2 * 500 kilograms |
| Heating temperature | 180 ℃ ~220 ℃ |
| Diesel engine | 15p electric start water-cooled engine |
| Hydraulic oil tank capacity | Steel plate of 4 mm thickness, insulation cotton of 5 cm thickness and stainless steel of 1 mm thickness. |
| Thickness of the paint can bottom | 3mm |
| Heating system | Liquefied petroleum gas (natural gas), with energy-saving burner (direct-injection stove) |
| Speed of the agitator | 20 ~ 100 rpm |
| Hydraulic system pressure | 50 MPa |
| Work pressure | 4 ~ 5 MPa |
| Stove | Multi-oven heating to ensure even heat and temperature of the can and the thermoplastic powder. |
| Stirring shaft | Stir the paint to ensure that the paint in the preheat is heated evenly during the preheat process. |
Frequently Asked Questions1. Q: Are you a factory or a trading company? A: We are a factory that has been in this field for more than 10 years. 2. Q: Where is your factory located? How can I get there? A: Our factory is located in Nanjing, Jiangsu Province, China, about 1.5 hours by train from Shanghai. We warmly welcome all customers from home and abroad! 3. Q: How can I get some samples? We are honored to provide you with samples. 4. Q: What shipping terms do you offer? A: We can provide FOB, CIF, CFR, etc. according to your requirements. 5. Q: What payment terms do you offer? A: Telegraphic transfer, sight letter of credit, etc. 6. Q: How is your factory in terms of quality control? A: Quality is the priority. All employees value quality control from start to finish. Our factory has obtained ISO 9001 and SGS certification.
Our company is a professional manufacturer of road melting kettles and road marking machines. If you are interested, please feel free to contact me via email at any time export@toproadtraffic.com
Specifications
| Applicable industries | Construction Engineering |
| Video output-check | Provide |
| Mechanical test report | Provided |
| Core components warranty | 1 year |
| Core components | Engine, pump |
| Origin | China |
| Weight | 1020 kilograms |
| Warranty | 1 Year |
| Unique selling point | High operational efficiency |
| Conditions | New |
| Brand Name | Straight road |
| Size (length * width * height) | 1800*1700 * 1580mm |
| Features | Simple to operate |
| Application | Thermal road marking machine boiler |
| Line type | Thermal plastic molding line |
| Heating temperature | 180℃-220℃ |
| Diesel engine | 15p electric start water-cooled engine |
| Hydraulic oil tank capacity | 70L |
| Insulation layer | Steel plate of 4 mm thickness, insulation cotton of 5 cm thickness and stainless steel of 1 mm thickness. |
| Thickness of the paint can bottom | 6mm |
| Heating system | Liquefied petroleum gas (natural gas), with energy-saving burner (direct-injection stove) |
| Hydraulic system pressure | 5MPa |
| Speed of the agitator | 20-100 rpm. |
