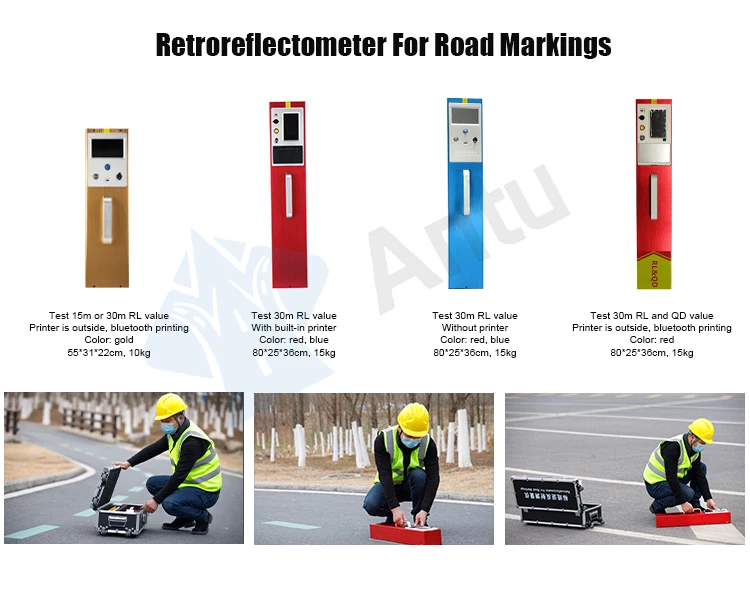

Lighten Traffic Road Marking Retroreflectometer
GT-RMQD-005
GT-RMQD-005: The retroreflectance measuring instrument is a portable field measuring instrument, which can simulate the road marking brightness visible to the driver under the headlamp illumination of a motor vehicle at night. The measured parameter is the luminous retroreflectance coefficient at night, i.e. RL value, in mcd·m⁻²·lx⁻¹. It is used to measure the retroreflectioncharacteristics o f road markings.
| Specs: | Information | Specs | Information |
| Item No.: | GT-RMQD-005 | Light source color temperature: | 2856±50K |
| Measurement items: | retroreflective coefficient mcd.m-2.lx-1 | Angle of incidence: | 88.76°, Complementary angle is 1.24° |
| Measurement range: | 0—4000 （RL）0—400（QD) | Charger: | DC 8.4V |
| Observation angle: | 1.05° | Ambient temperature: | -15℃~+60℃ |
| Continuous working time of battery: | ＞72h | Ambient humidity: | ＜98%, no frost |
| Measuring aperture area: | 340mm x 95mm | Voice broadcast: | YES |
| Error of repeatability measurement: | ≤3% | Printer: | Built-in integrated printing |
| Data storage space: | 8GB | Package Size: | 550*320*220mm |
| Built-in battery capacity: | 13Ah | Weight: | N.W: 5KG G.W: 10KG |
| Warranty: | 12months | Certificate: | CE certification |
Back of the product
The simple interface layout (e.g., charging ports, data interfaces) is concentrated on the back or side, making it easy to connect while maintaining overall aesthetics and protection.
Retroreflectometer Calibration Tile
The instrument is equipped with a precision calibration plate, made of high-standard anti-reflective material, and the reflection coefficient value is strictly calibrated and has a traceability certificate.
One-touch calibration before each measurement ensures that the instrument is always in optimal working condition, eliminating
errors caused by environmental and equipment drift, and providing a solid and reliable reference for every reading.
Smart fast charging adapter
It comes standard with a high-efficiency smart charger that supports fast charging technology, significantly reducing the waiting time for instrument charging and allowing the device to quickly return to a fully charged state.
Built-in multiple safety protection mechanisms (such as overcharge, overcurrent, and short circuit protection) ensure a safe and reliable charging process and effectively extend the life of the instrument’s built-in lithium battery.
It is suitable for laboratory environment and field measurement. Road marking manufacturers,road marking process construction units and road quality supervision units use it to measure the retroreflective performance of road markings.
| Specs: | Information | Specs | Information |
| Item No.: | RM-GT-001 | Light source color temperature: | 2856±50K |
| Measurement items: | retroreflective coefficient mcd.m-2.lx-1 | Angle of incidence: | 88.76°, Complementary angle is 1.24° |
| Measurement range: | 0—4000 （RL）0—400（QD) | Charger: | DC 8.4V |
| Observation angle: | 1.05° | Ambient temperature: | -15℃~+60℃ |
| Continuous working time of battery: | ＞72h | Ambient humidity: | ＜98%, no frost |
| Measuring aperture area: | 340mm x 95mm | Voice broadcast: | YES |
| Error of repeatability measurement: | ≤3% | Printer: | Optional |
| Data storage space: | 8GB | Package Size: | 800*250*360mm |
| Built-in battery capacity: | 13Ah | Weight: | N.W: 5KG G.W: 15 KG |
| Warranty: | 12months | Certificate: | CE certification |
Our company is a professional manufacturer of road reflection measuring instruments, road marking measuring instruments, and road sign reflection measuring instruments. If you are interested, please feel free to contact me via email at any time export@toproadtraffic.com
