| Main parameters | ||||
| Measurement items | Reverse scattering coefficient (mcdm-2.lx-1) | |||
| Measurement range | 0~4000 | |||
| Observation angle | 1.05° | |||
| Incident angle | 88.76 °C, the complement angle is 1.24 ° | |||
| Light source color temperature | 2856 ± 50k open light path | |||
| Measuring the area of the hole diameter | 200mm x 95mm | |||
| Reproducibility error | ≤2% | |||
| Battery continuous operation time | > 30 hours | |||
| Data storage space | 16G (over 200,000 test data) | |||
| Working temperature and humidity | -15 °C + 60 °C, <98%, no frost | |||
| Size | 550mm x 310mm x 220mm | |||
| Net weight | 4.3 kilograms | |||

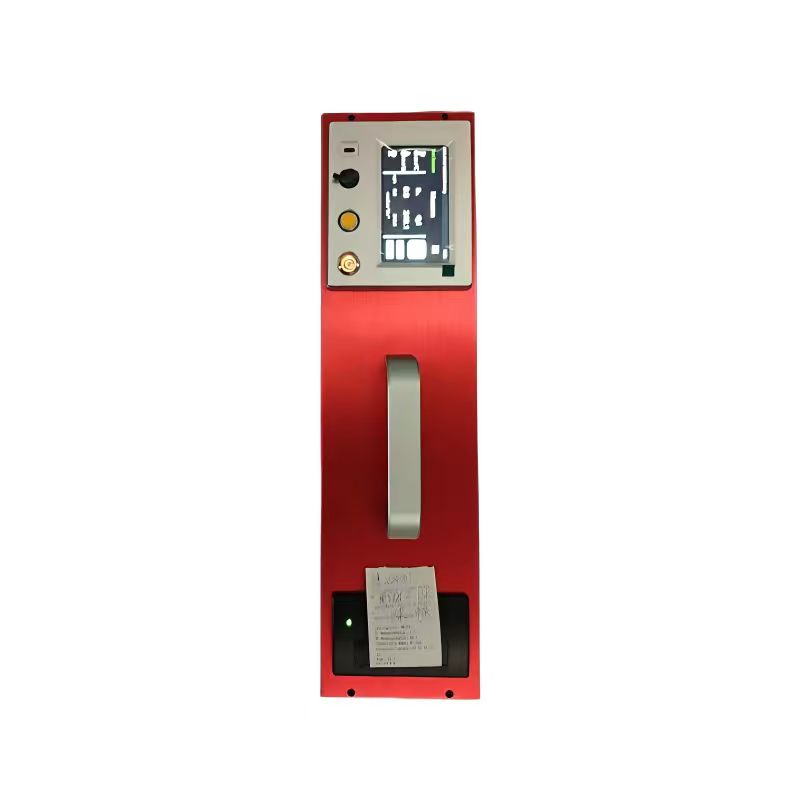

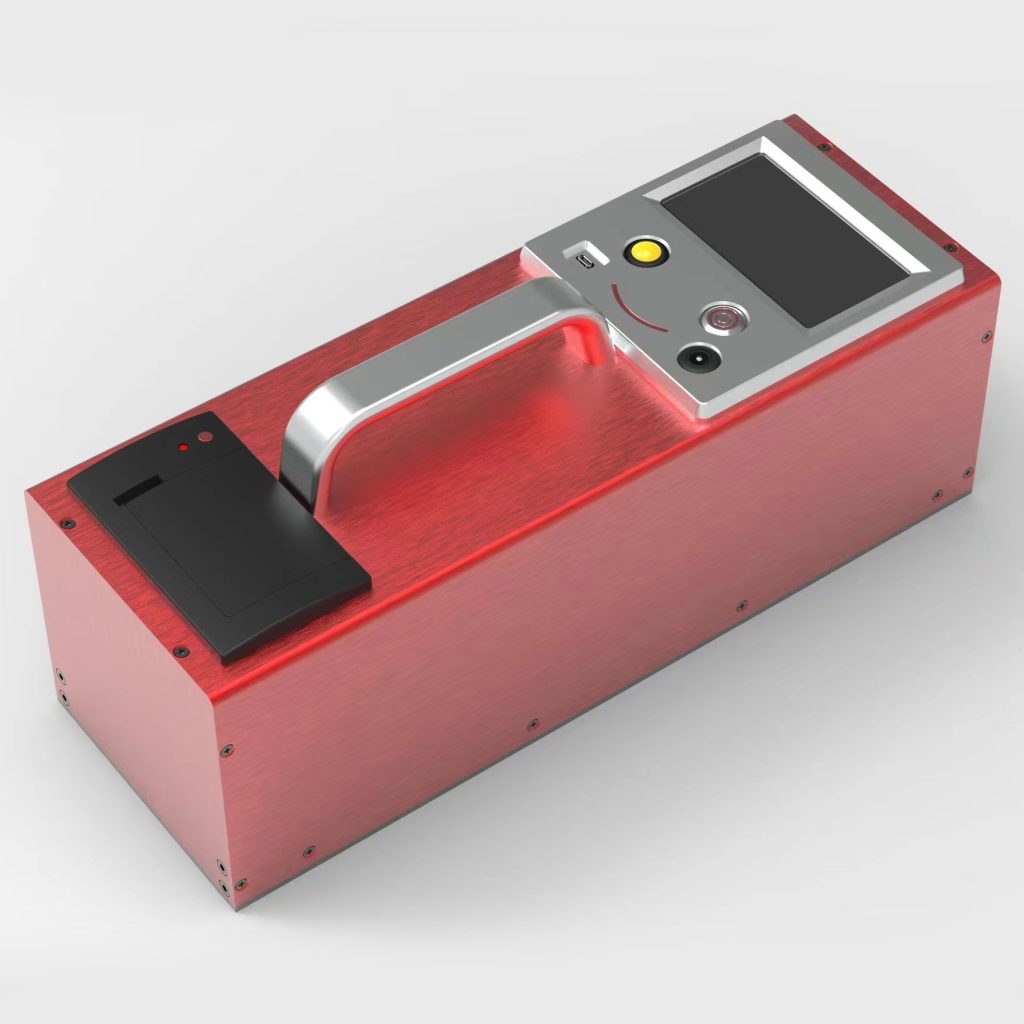

RetroreflectometerTest deviceRoad traffic line retroreflector
GT-RM-006 is a portable field meter for measuring the retroreflectance coefficient of linear elements with an open light path. Unit: mcd/(m ²·sr).
The main features of its research are the simulation of the night driving of motor vehicles on the highway, and the brightness of the marked (made of retroreflective material) which the driver in the cab observes after reflection on the road surface.
The instrument can measure the marked backscattering brightness coefficient under three conditions: RL dry, RL wet, and RL continuous rainfall. To support the Qd measurement mode, the Qd component needs to be selected.
Main functional features*Open light path, no interference from external light during measurement.
*Bright display, visible outdoors.
*Supports storage of more than 200,000 detection data information.
*Real-time voice broadcast of measurement data, on-site printing of detection data.
*Supports measurement under dry, humid and continuous rainfall conditions.
*Ceramic calibration block.
*Supports vibration mark measurement.
*USB data interface, supports one-key execution of data export.
FAQ
Q: Is your company a trading company or a factory?
A: Factory + Trade (Integrated), 29 years of focus on the field of test instruments, 10 years of export experience.
Q: When will it be delivered after placing the order?
If we have stock, we can arrange for shipment within 7 days. Please note that our
lead time for production depends on the specific item and the quantity of the project.
Q: What about the after-sales service warranty?
A: 12 months warranty. Moreover, even if it is not from our factory, we can help you to repair the problem controller for free. What you need to do is to send the controller to us.
After the warranty period, the professional after-sales service team will provide complete technical support and help customers solve the problems encountered in the use of our products, and deal with the guests’ problems and complaints in a professional and timely manner.
Q: What is the quality of services and products?
Answer: Each instrument must be subject to 100% quality inspection and testing during transportation and delivery of goods, and product training is provided for each of our products, with video training to show you how to install and operate. All products comply with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requirements
Our company is a professional manufacturer of road hot-melt coatings, road retroreflective measuring instruments, and road marking machines. If you are interested, please feel free to communicate with me via email at any time export@toproadtraffic.com
