Retroreflector Meter
Open Light Source On Rainy Night Retroreflectometer
- Price:USD2200-2400/Set
- Line Color:White, Yellow, Red, Green Or Blue
- Test Data Information:99,999
- Measurement Range:0---4000
- Ambient Temperature:-15℃~+60℃
- Ambient Humidity:＜100%，No Frost
- Angle Of Incidence:88.76°
- Observation Angle:1.05°
- Built-in Battery Capacity:9600mAh The Lithium Battery
- Measuring Aperture Area:450mm X 65mm
- The Whole Machine Net Weight:2.85Kg
- High Light:Real Time Voice Broadcast Retroreflectometer，Road Marking Retroreflectometer，No Frost Pavement Marking Retroreflectometer
-
Fast and Safe Logistics
-
Get Catalogue for Free
Take a Closer Look
Product Description

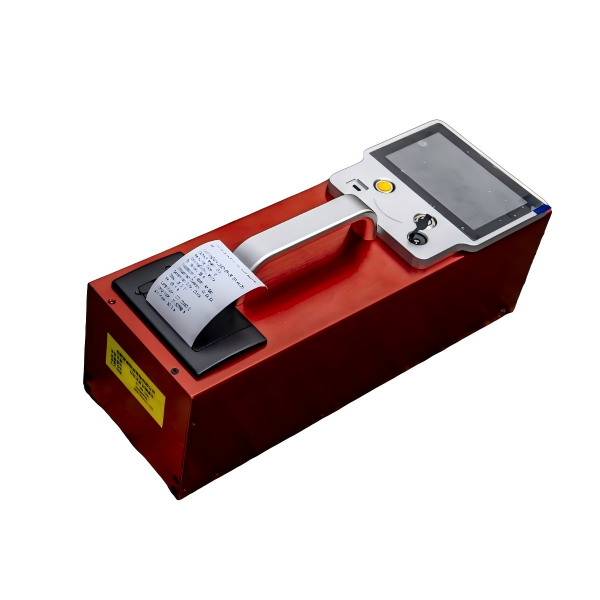

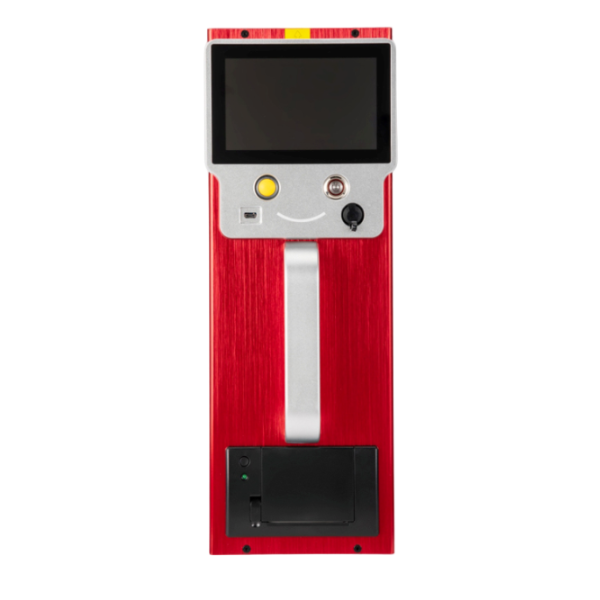

Marking line retroflectometer (rainy night version/GT-RM-003) is a portable on-site measuring instrument with anopen optical path, used to measure the retroreflection brightness coefficient of the line. Unit: mcd/(㎡.lx). The main characteristic of its research is to simulate a motor vehicle driving on a highway at night, and the brightness of the markings (made of retroreflective materials) illuminated by the headlights on the road surface is observed by the driver in the cab after reflection. The measured parameter is the nighttime retroreflective brightness coefficient, RL value. This instrument can measurethe backscatter brightness coefficient of the marking under three conditions: RL dry, RL wet, and RL continuous rainfall.
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :5-7 working days
Any other shipment way could be negoticated
Tag
88.76° Pavement Retroreflectometer,Thickness gauge,
RL&QD Pavement Marking Retroreflectometer
Exhibition
Specifications
Main technical parameters |
|
|
Measuring aperture area |
450mm x65mm |
|
Error of repeatability measurement |
≤5% |
|
Angle of incidence |
88.76° |
|
Observation angle |
1.05° |
|
Complementary angle |
1.24° |
|
Measurement range |
0---4000 |
Packing list |
||
|
Serial number |
Name Specification |
Number |
|
01 |
Retroreflectiometer For Road Markings |
1 |
|
02 |
Charger |
1 |
|
03 |
USB Date Line |
1 |
|
04 |
Instructions |
1 |
|
05 |
Certificate |
1 |
|
06 |
Warranty Card |
1 |
|
07 |
Calibration Board |
1 |
|
08 |
Stylus |
1 |
