Retroreflector Meter
Raised Road Marking Retroreflectometer For Road Stud
- Price:USD4350-4600/Set
- Measurement Range: 0---4000
- Complementary Angle:1.05°
- Angle Of Incidence:88.76°
- Data Storage Space:16GB
- Instrument Size:480mm X 134mm X 124mm
- Measuring Aperture Area:240mm X 95mm
- Light Source Color Temperature:2856±50K
- Measurement Items:Retroreflective Coefficient Mcd.m-2.lx-1
-
Fast and Safe Logistics
-
Get Catalogue for Free
Take a Closer Look
Product Description

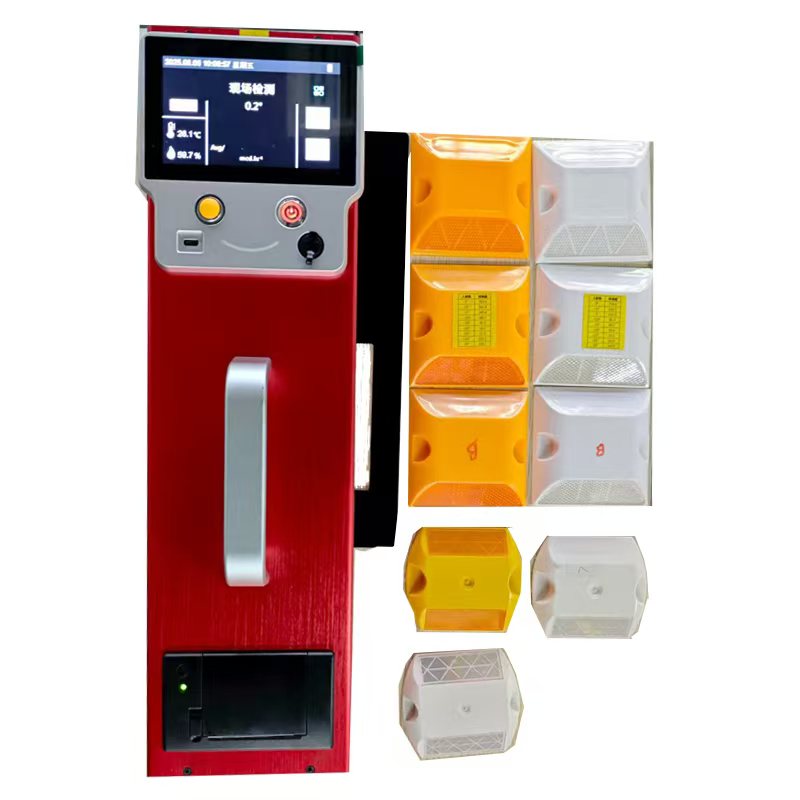

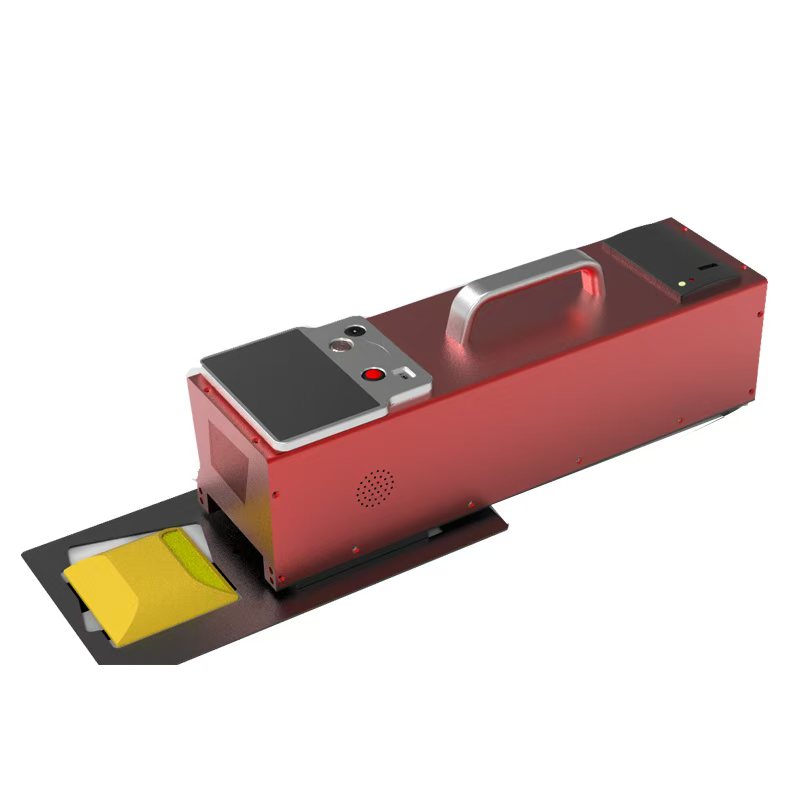

GT-RM-008 Raised Road Marking Retroreflectometer measurement object is a rectangular raised landmark, which is the main performance indicatorfor measuring the luminous intensity coefficient ofthe raised landmark.
This instrument issuitable for photometry laboratories, testingcenters, and highway construction sites. It is also suitable forinspection ofproduct quality by protruding road sign manufacturers.
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers.
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS: 3-7 working days.
Any other shipment way could be negoticated.
Tag
30M Retroreflector Meter,Retroreflector Meter, reflectometer for road marking
Exhibition
Specifications
Main technical parameters |
|
| Error of repeatability measurement | ≤3% |
| Measuring aperture area | 240mm x 95mm |
| Observation angle | 1.05° |
| Angle of incidence | 88.76°, Complementary angle is 1.24° |
| Light source color temperature | 2856±50K |
Packing list |
||
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
