Retroreflector Meter
Spectrocolorimeter Device for Whitness
- Price: USD2200-2400/Set
- Measuring aperture: Dual caliber: MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm
- Sensor: 256 pixel dual array CMOS image sensor
- Lighting source: Combined LED light source, UV light source
- Observer angle: 2°/10°
- Data storage space: 1000 standard samples and 30000 samples
- Overall volume: 184mmx77mmx105mm
- Weight: 600g
-
Fast and Safe Logistics
-
Get Catalogue for Free
Take a Closer Look

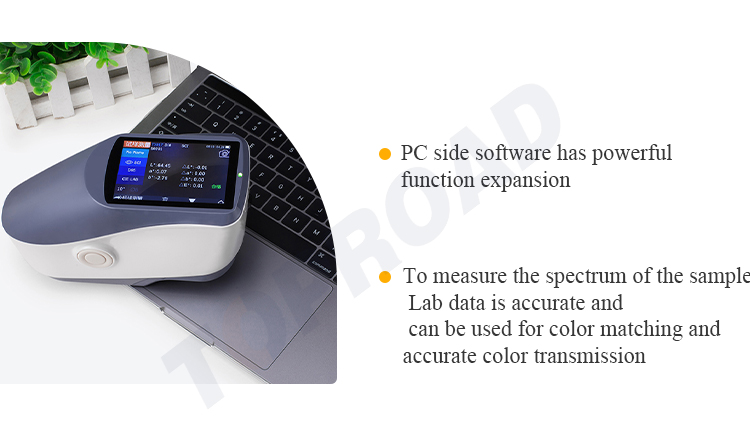

Product Description
The instrument isa high-precision spectrocolorime ter with the character of stable working accurate color measurement, powerful functions. taking the leadingposition in the color industry. They are widely used in plastic, electronics, paints, textil e, printing, automobile, medical, cosmetic and fo od industriesor science research institutes and laboratories.
Main Features
- One click measurement of brightness factor and chromaticity coordinates for traffic signs, markings,and reflective films;
- Φ4/8mm caliber can be selected arbitrarily, suitable for more tested samples;
- Large capacity storage space, capable of storing over 30000 test data.
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS: 3-7 working days.
Any other shipment way could be negoticated.
Tag
2856+50K Retroreflector Meter,DC 8.4V Retroreflector Meter, 340mm X 95mm reflectometer for road marking
Specifications
Main Technical Parameters |
|
| Inter station difference | MAV, ∆E*ab within0.15 (BCRA series II 12 color plates measured average) |
| Repeatability | Spectral reflectance:MAV,standard deviation within 0.08% (within 400-700nm:0.18%) Repeatability Chromaticity value:MAV,AE * ab within 0.03 (after preheating and calibration of the instrument, measure the average value of the whiteboard 30 times at an interval of 5 seconds) |
| Observation angle | 2°/10° |
| Lighting source | Combined LED light source, UV light source |
| Data storage space | 1000 standard samples and 30000 samples |
